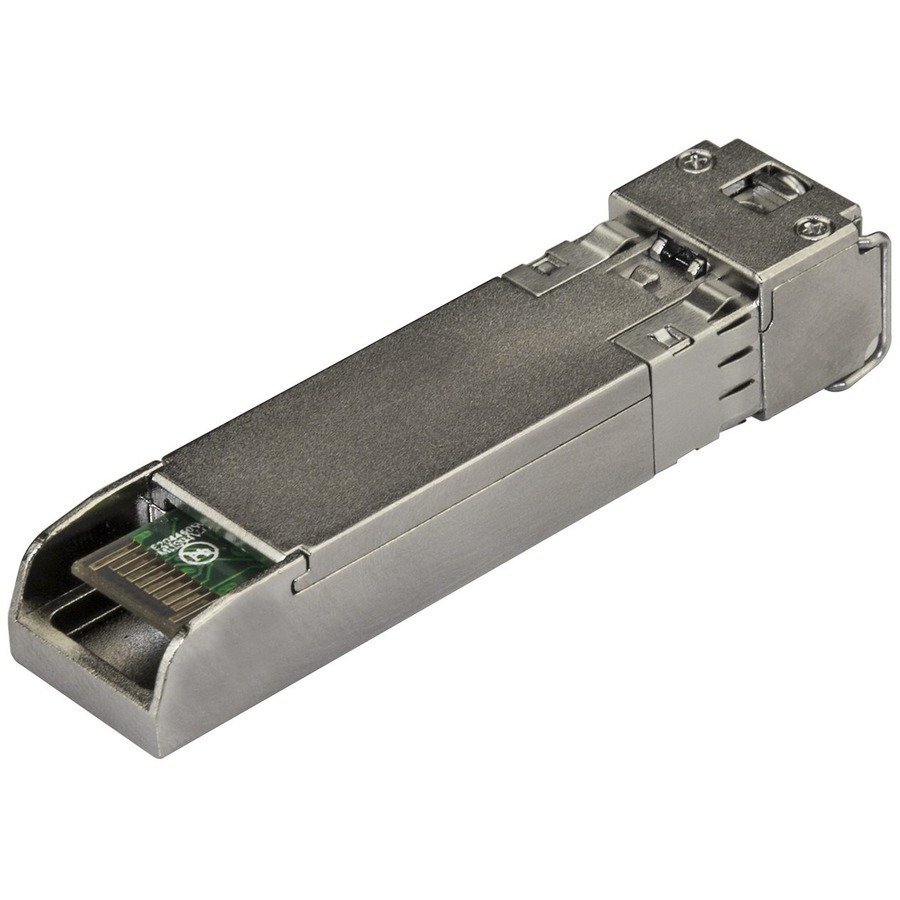

StarTech.com MSA Uncoded SFP Module – 100BASE-LX – 100Mb Ethernet SFP 100MbE Single Mode Fiber (SMF) Optic Transceiver Module – 10km DDM

MSA Uncoded SFP – 100BASE-LX 100Mbps – 100MbE Module – 100Mb Ethernet SFP 1310nm Single Mode (SMF) Transceiver – 10km (6.2mi) – LC Connector DDM – Hot-Swappable & MSA Compliant – Lifetime Warranty

100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 100MbE connectivity
TECHNICAL SPECS: 100BASE-LX | 100Mbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver’s status to most SNMP network management tools.
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch; our modules won’t void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

$89.99

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

General Information

Manufacturer:StarTech.com
Manufacturer Part Number:SFP100BLXST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:SFP Module
Marketing Information:

The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1310nm
Maximum Data Transfer Rate: 155 Mbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Packaged Quantity:1
Product Type:SFP

Technical Information

Application/Usage:

Optical Network
Data Networking

Interfaces/Ports

Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 100Base-LX Network

Media & Performance

Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:Fast Ethernet
Network Technology:100Base-LX

Physical Characteristics

Form Factor:Hot-swappable
Height:0.5″
Width:0.6″
Depth:2.3″
Weight (Approximate):0.07 lb

Miscellaneous

Compatibility:MSA Compliant
Environmentally Friendly:Yes
Country of Origin:China

Warranty

Limited Warranty:Lifetime

Additional information

Weight	0.1 lbs
Dimensions	4.6 × 3.7 × 1.3 in
