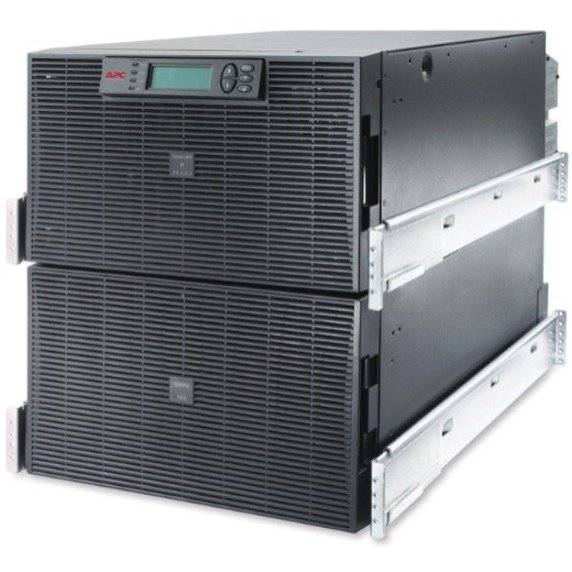

APC Smart-UPS RT 20kVA Tower/Rack-mountable UPS

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT20KRMXLI
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT
Product Name:Smart-UPS RT 20kVA Tower/Rack-mountable UPS
Marketing Information:

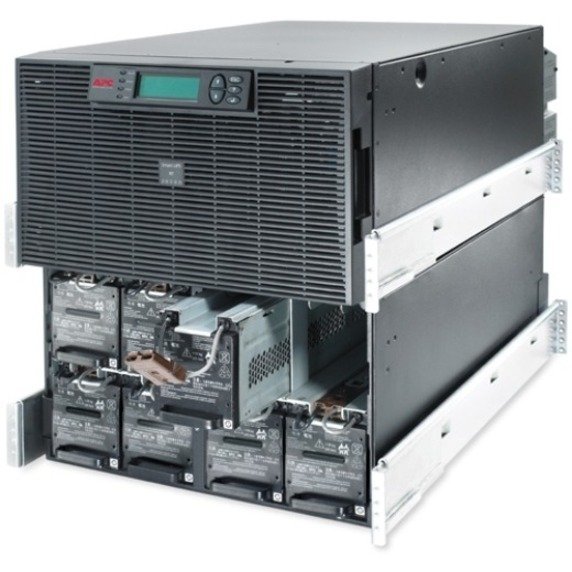

APC Smart-UPS RT 20kVA Tower/Rack-mountable UPS reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. This UPS features hot-swappable batteries which ensures clean, uninterrupted power to protected equipment while batteries are being replaced. It also increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Product Type:Double Conversion Online UPS

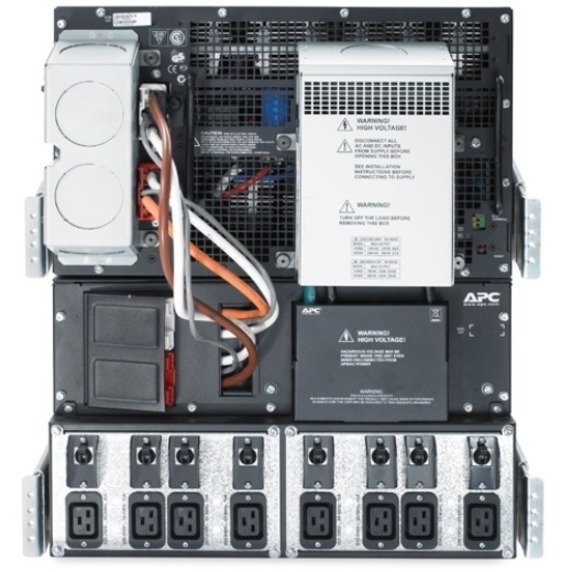

Plug/Connector Type:

• Hard Wire 3-wire
• Hard Wire 5-wire

Receptacle Type:

• Hard Wire 3-wire
• Hard Wire 5-wire
• IEC 60320 C19
• IEC Jumper

Receptacle Detail:

• 1 x Hard Wire 3-wire
• 1 x Hard Wire 5-wire
• 8 x IEC 60320 C19
• 2 x IEC Jumper

Number of Battery & Surge Outlets:21
Overload Protection:Yes

Load Capacity:20 kVA
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Sine Wave

Network Management:SNMP Manageable
Bypass Switch:

• Automatic
• External (Optional)
• Internal
• Manual
• Static

Emergency Power OFF:Yes

Serial Port:Yes
Network (RJ-45):Yes
Modular Slots:SmartSlot

Battery Characteristics:Maintenance-free/Sealed/Spill Proof
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:2.50 Hour

Product Color:Black
Form Factor:Rack-mountable
Rack Height:12U
Height:21″
Width:17″
Depth:30.4″
Weight (Approximate):546.15 lb

Package Contents:

Environmentally Friendly:Yes
Country of Origin:Philippines

Limited Warranty:2 Year
